KPN line (AON) register SFP

Hello ​@UnhappyUser

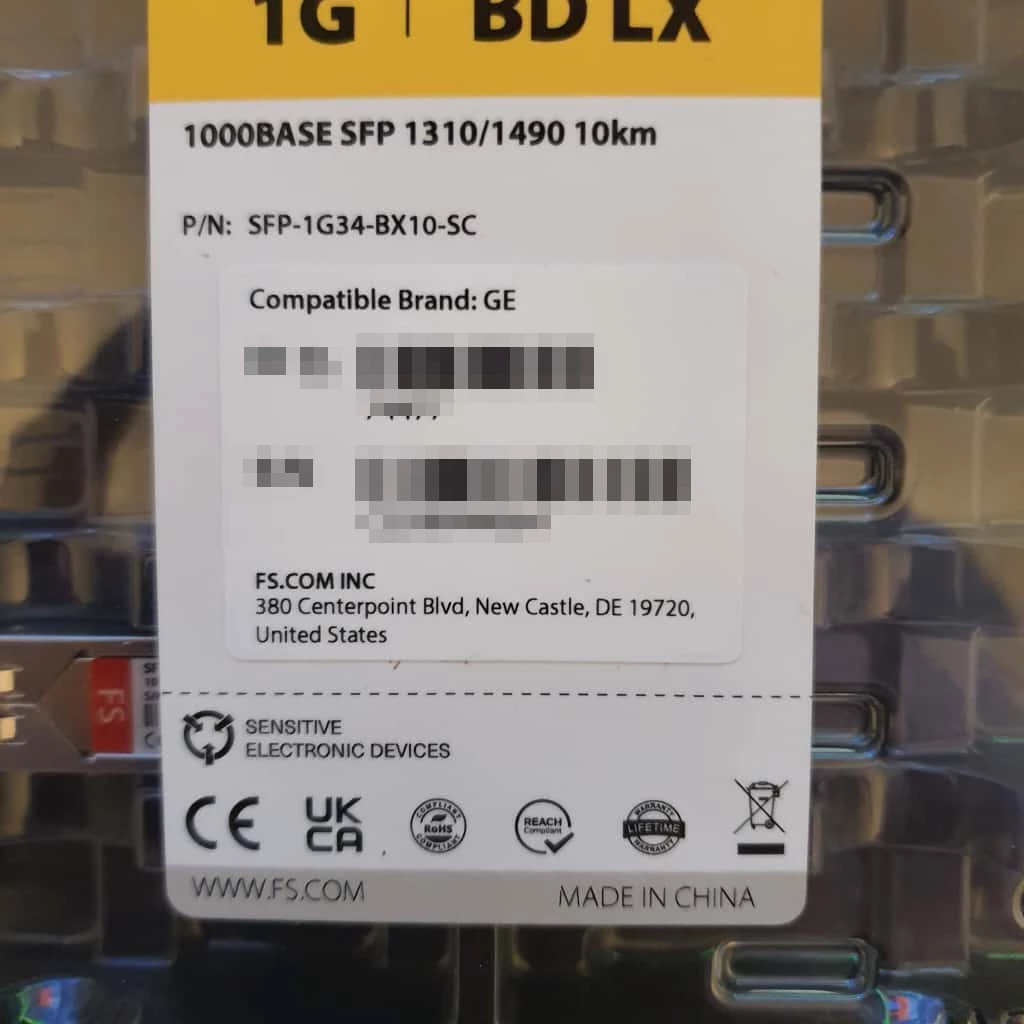

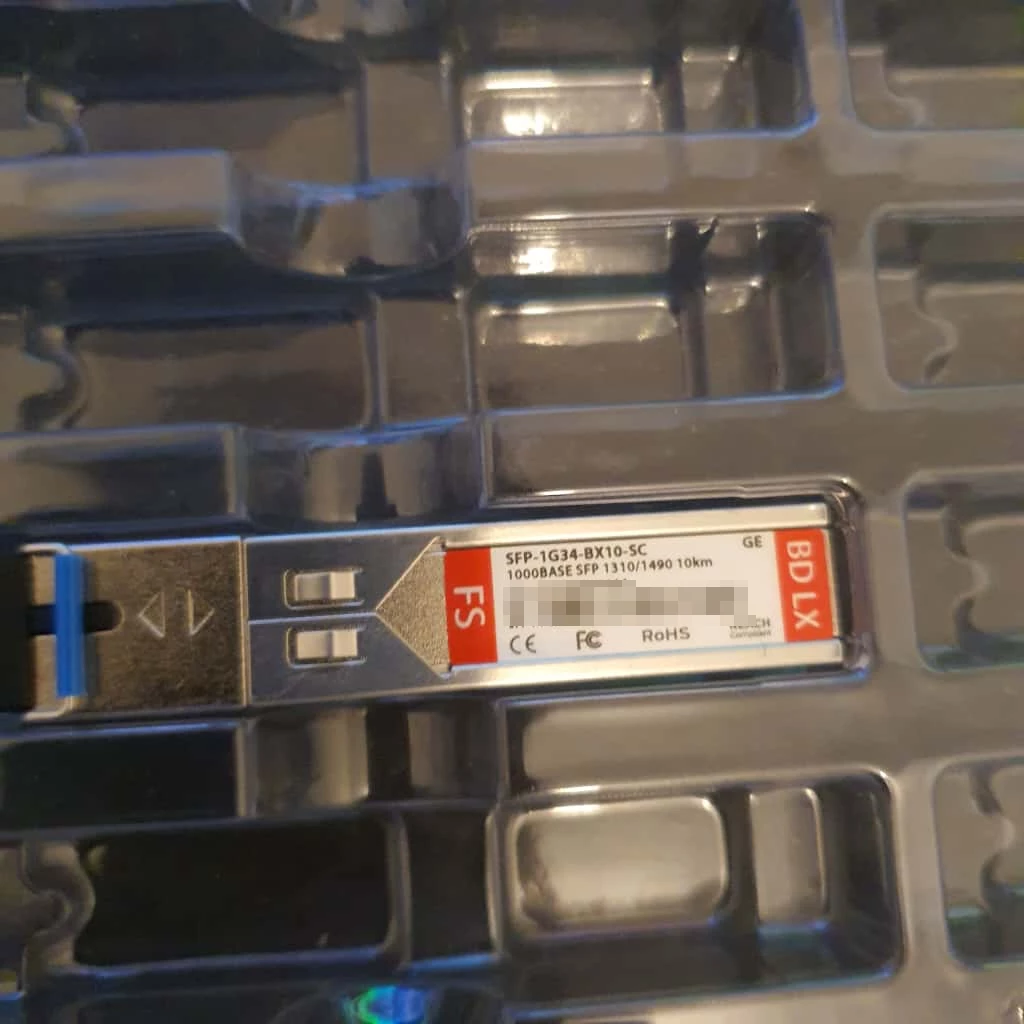

That's indeed AON, the settings in my previous post should work. You can share a photo of the settings in your router interface and also a photo of the SFP.

​@UnhappyUser

In another topic I can see that your SFP has the wrong wavelengths, you'll need this one.

https://www.fs.com/eu-en/products/39135.html

Are you sure, in my notes I have Zyxel FMG3005-R20A (TX 1310 nm / RX 1490 nm) any way to quickly confirm before I order the other version ?

​@UnhappyUser

I saw this topic:

https://community.odido.nl/bekabeld-internet-492/wat-voor-sfp-326213

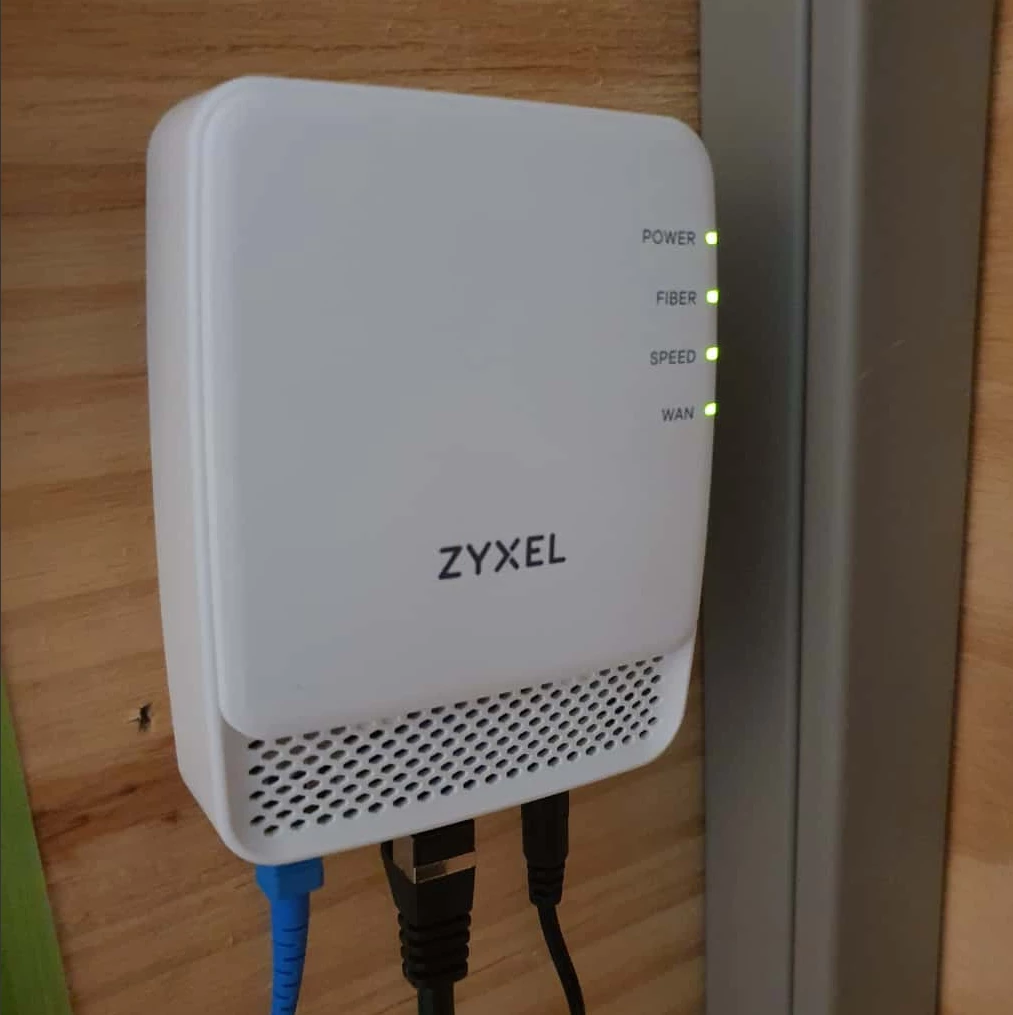

​@UnhappyUser did it work for you? I tried the FS module with the right wave lengths (1310/1550) and it didn't work. It only works when using the media converter.

​@UnhappyUser and ​@andre3d The specs for AON are listed here under “Eigen Media Converter aansluiten”

Hi ​@Sven-Odido. I did get the right module with the correct specs, but it still didn't work. I shared as much technical information as possible in my topic, but didn't get a response. Perhaps you can help?

​@Waqqas I have since purchased the one you mentioned /linked and again no luck.

Thanks for helping but I don’t see anywhere on these 8 pages that information since 99% of it is about gpon which is completely different (maybe I am being dumb :( )
